Ford Windsor EFI V8 Valve Spring Kit

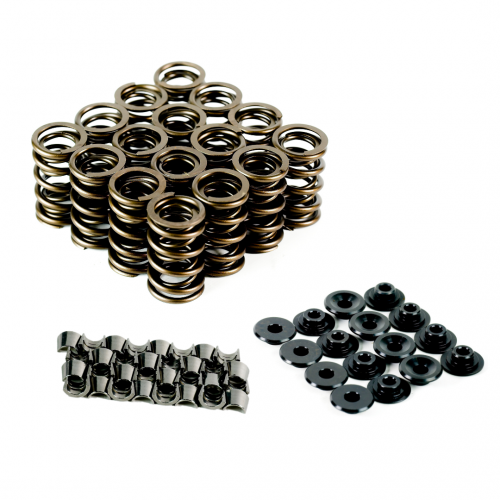

VTK302WEFI Kit Contains:
7333-16 - Dual Valve Springs
11700-XR8 - Retainers (see important fitting notes below)
11701-16 - Valve Locks

Part no 11700-XR8 includes two different retainers
The retainer with the flat top is the inlet retainer (11700)
The retainer with the large chamfer on the top face is a +0.100" retainer (11710)

You must remove slow rotor from the exhaust valves and use this retainer to make up the height difference so the spring will be common on all valves.

Before ordering this kit, you must check your installed height. Often we find variations in installed height that require a different combination of retainers to what is in this kit. In some cases, our customers have required all Standard height retainers or all +.100 retainers.
