Valve spring kit to suit Ford Falcon EB-AUII EFI 5.0litreBefore ordering this kit, it is important to check your installed height
Often we find variations in installed height that require a different combination of retainers to what is in this kit.
Further product details listed below

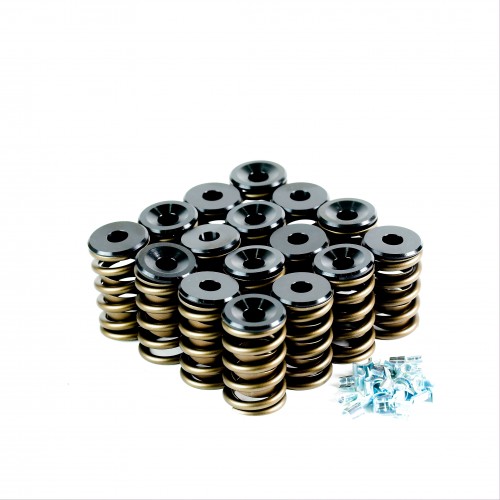

VTKXR8 kit contains:
7739-16 - Valve Springs
11700-XR8 - Retainer Set **** See important notes
4135-16 - Valve Locks
****
Part no 11700-XR8 includes two different retainers
The retainer with the flat top is the inlet retainer
The retainer with the large chamfer on the top face is a +0.100" retainer
You must remove slow rotor from the exhaust valves and use this retainer to make up the height difference so the spring will be common on all valves.
Before ordering this kit, it is important to check your installed height. Often we find variations in installed height that require a different combination of retainers to what is in this kit.
In some cases, our customers have required all Standard height retainers or all +.100 retainers.
